Problem Ends Fixed Steel Circular Shaft Shown Figure M1 83 Nm M2 59 Nm D 15 Mm B 1 M G 80 Q29604686

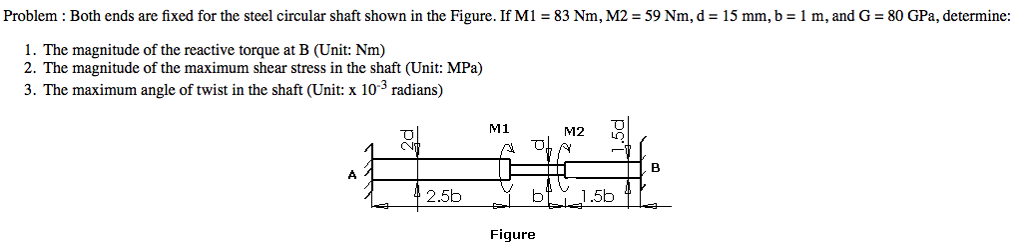

Problem : Both ends are fixed for the steel circular shaft shown in the Figure. If M1 = 83 Nm, M2 = 59 Nm, d = 15 mm, b = 1 m, and G = 80 GPa, determine: 1. The magnitude of the reactive torque at B (Unit: Nm) 2. The magnitude of the maximum shear stress in the shaft (Unit: MPa) 3. The maximum angle of twist in the shaft (Unit: x 10-3 radians) M1 M2 Ln CN 2.5b Figure Show transcribed image text
